Slope Stabilization System: Modern Material Synergy
Slope stability is a critical factor in the success of infrastructure and mining projects in Indonesia. High rainfall intensity, loose tropical soil conditions, and fluctuating pore-water pressure make slope failure one of the most persistent geotechnical risks.
In this context, slope stabilization is not merely intended to resist gravitational forces, but to create an integrated soil–structure system that behaves harmoniously and adapts to environmental conditions. The role of building materials becomes essential, through proper material combination, slope engineering can achieve long-term stability without imposing excessive structural load.
Building Materials and Principles of the Slope Retaining System
Modern slope design no longer relies on a single retaining structure. Instead, it applies a multi-layered system using structural building materials such as geogrid/mesh, rock bolt, and shotcrete.
These components work simultaneously to reinforce the active zone, restrain internal shear planes, and protect the surface from erosion and water infiltration.

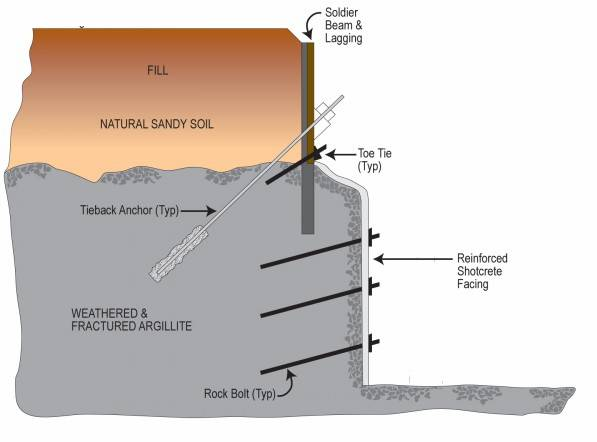

a. Combined Mechanism
- Geogrid / Mesh reinforces the surface and active soil layers through interlocking between soil particles and polymer or steel structure. This mechanism transfers shear stress into tensile resistance, increasing the effective shear strength and reducing lateral deformation.
- Rock Bolt functions to hold and lock the inner layers so that the soil or rock mass behaves as a single body.
Steel bolts with a diameter of 25–38 mm and a length of 3–6 m are fully grouted, transferring slope driving forces into more stable layers. - Shotcrete acts as the final protective layer, distributing load between anchor points, preventing erosion, and shielding the surface from extreme weather.
The Steel Fiber Reinforced Shotcrete (SFRS) type, containing 30–40 kg/m³ of steel fibers, provides compressive strength of 35–55 MPa and flexural strength of 4–6 MPa, suitable for humid and high-vibration environments.
The combination of these three materials creates a complementary reinforcement system: geogrid maintains active-layer stability, rock bolts strengthen the internal structure, and shotcrete protects and stabilizes the surface.

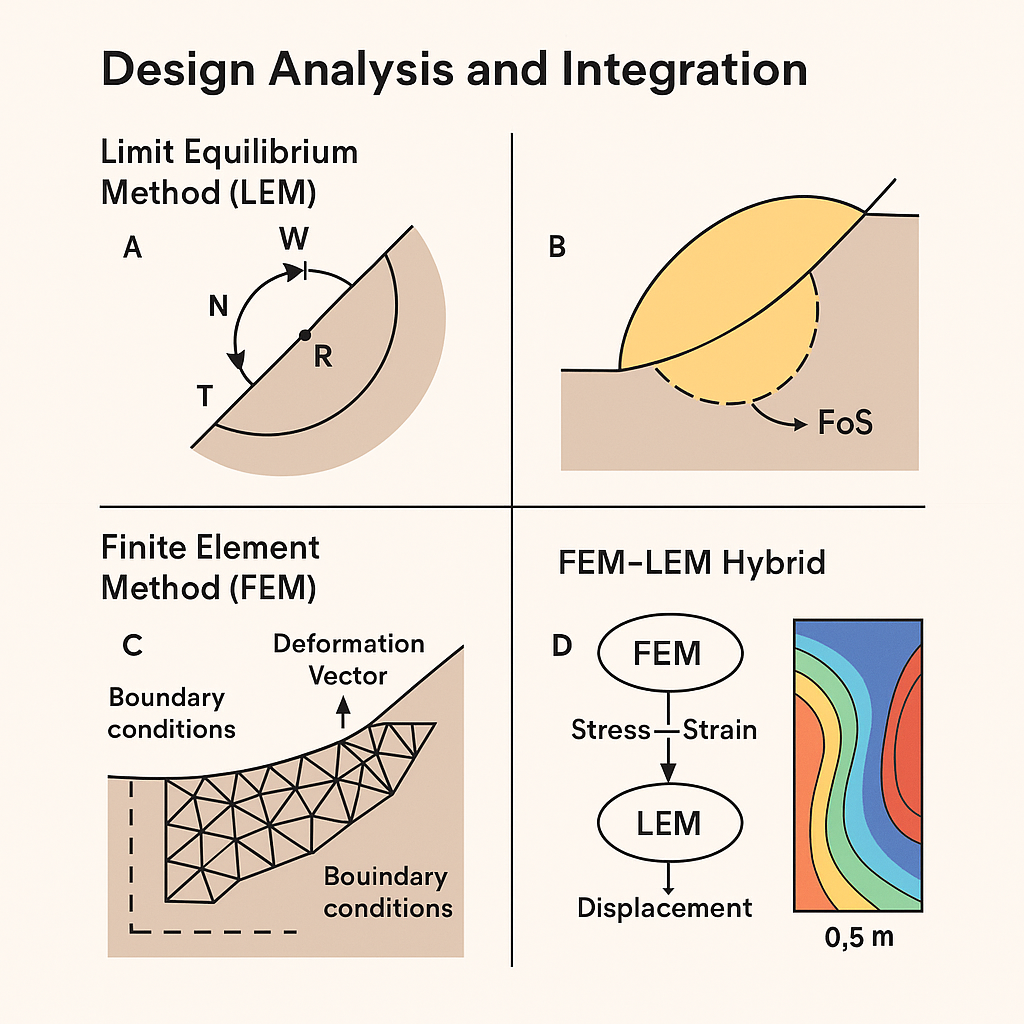

Design Analysis and Integration
To achieve optimal results, slope stabilization design adopts two main analytical approaches:
- Limit Equilibrium Method (LEM): Evaluates the balance of forces and moments along potential slip surfaces using Bishop or Spencer methods to determine the Factor of Safety (FoS).
- Finite Element Method (FEM): Models deformation, stress distribution, and soil–structure interaction using constitutive models such as Mohr–Coulomb or Hoek–Brown.
The LEM–FEM hybrid approach is widely adopted as it provides both global stability evaluation and local material behavior analysis.

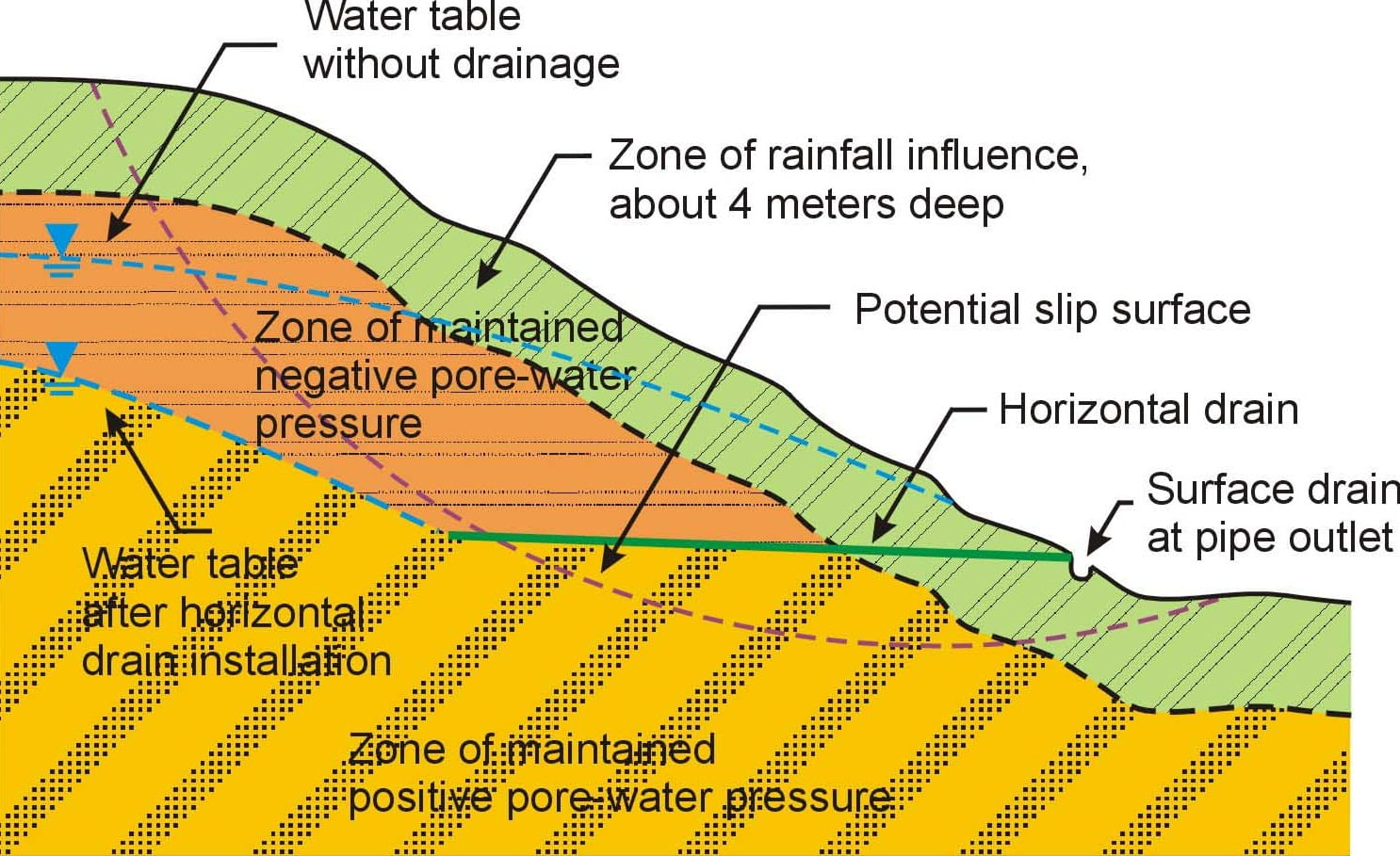

Drainage: The Lifespan-Defining Component
Hydrological conditions are the most critical variable in slope stability. An increase in pore-water pressure (uuu) of 10 kPa may reduce the FoS by up to 0.15 points. Therefore, every stabilization design must include an integrated active drainage system across all layers.
Typical drainage components include:
- Horizontal Drain Holes (HDH): 6–15 m in length to reduce internal pore pressure.
- Weep Holes: Ø50–75 mm spaced every 2–3 m behind the shotcrete layer.
- Geocomposite Drain Layer: permeability ranging from 10⁻³–10⁻⁴ m/s, channeling water through saturated zones.
Field Evaluation and System Performance
The performance of the slope stabilization system must be continuously monitored through geotechnical instruments such as:
- Inclinometer → to detect lateral displacement (mm/m).
- Piezometer → to monitor pore-water pressure (kPa).
- Rock Bolt Load Cell → to verify actual bolt tension (kN).
Field data from a nickel mining project (2024) demonstrated remarkable results:
- FoS increased from 1.05 → 1.58
- Surface deformation reduced by 68%
- Stabilization lifespan exceeded 12 years with minimal maintenance.
Conclusion
- Slope stabilization today relies on the synergy of three main elements, geogrid/mesh, rock bolt, and shotcrete, working together as a composite retaining system.
- Modern building materials no longer function as passive structures but as active components of the soil–structure system, capable of adapting to stress and hydraulic variations.
- The success of slope design depends heavily on numerical integration (LEM–FEM), active drainage, and long-term monitoring.
- With a behavior-based and adaptive material approach, slope stability can be achieved efficiently, economically, and sustainably.
